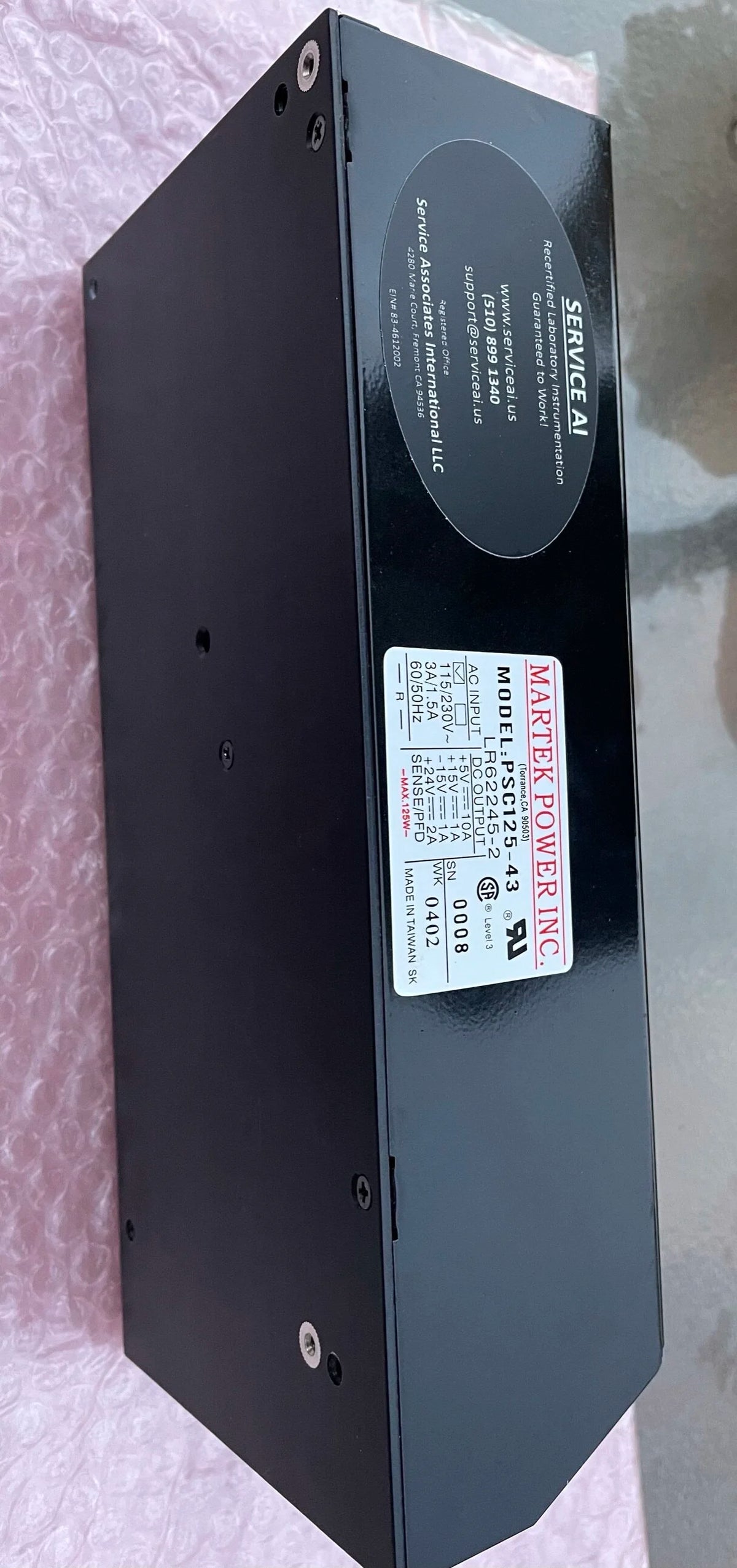

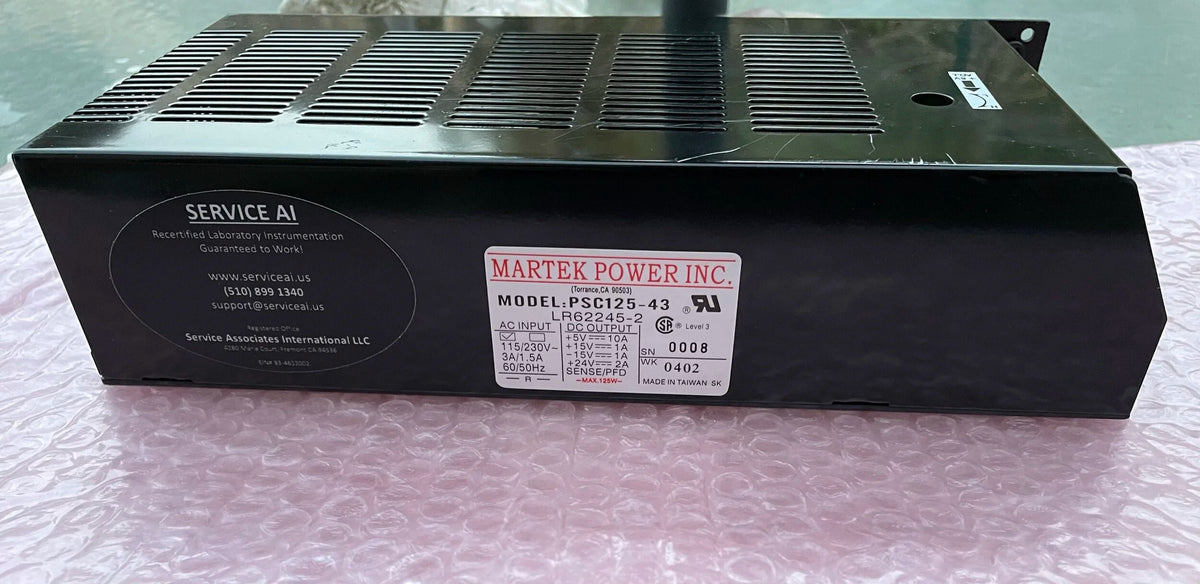

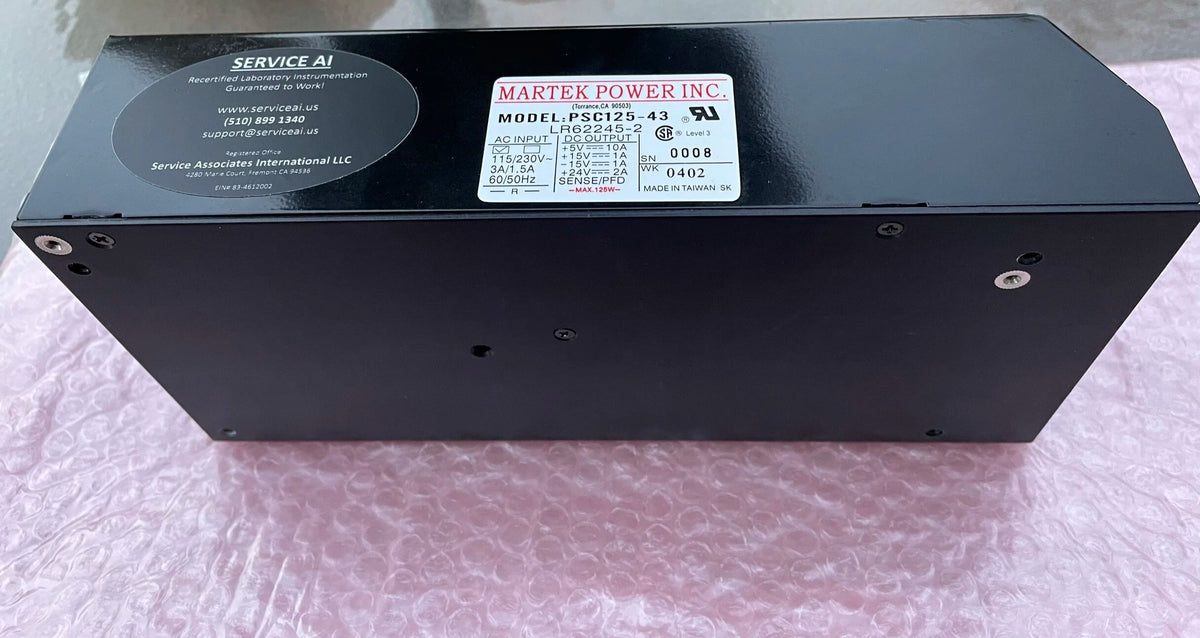

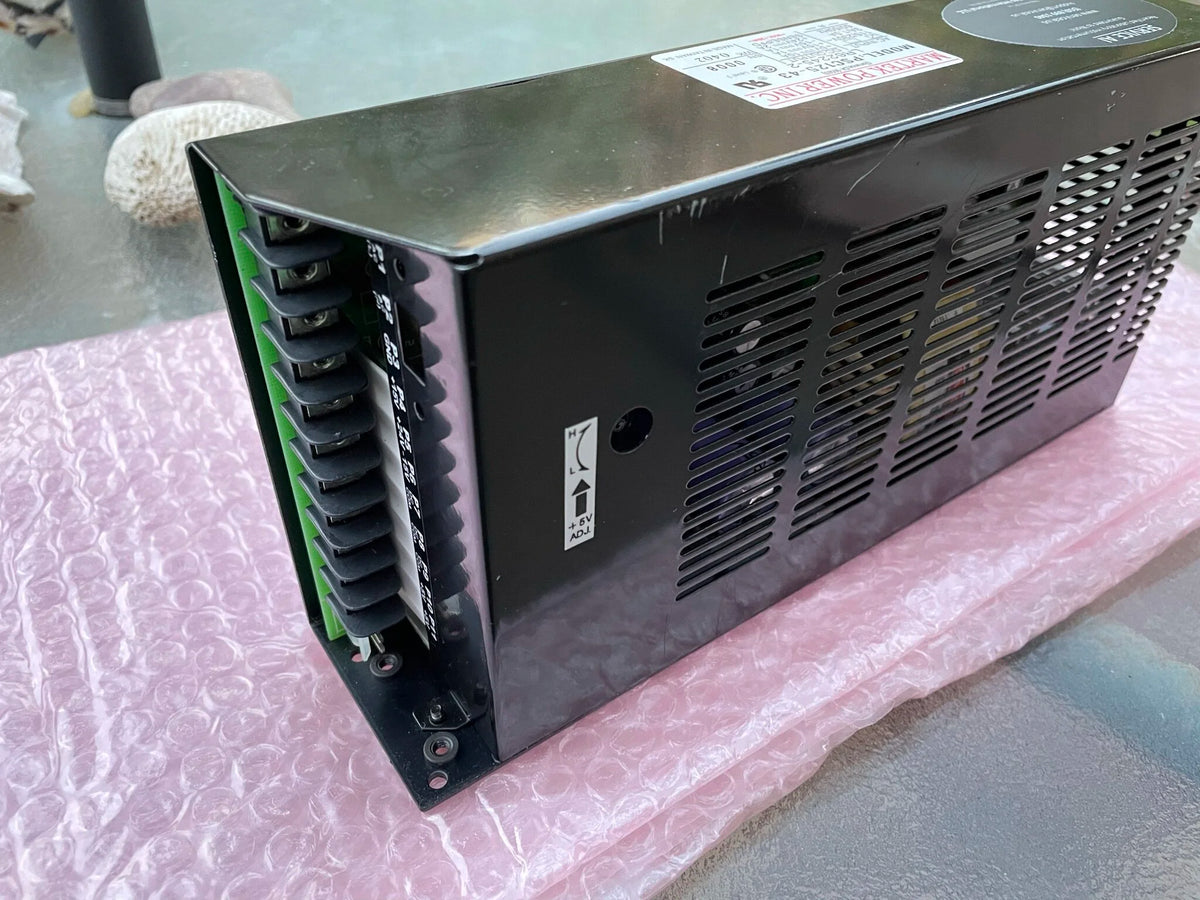

Beckman LS6500 Main P.S. Assembly,(+5,15,+24)

This part consists of the LS6500 Mains Power Supply (PN. 606682) without the Relay Brd. P/N. 500702. The item needs service intervention, and is sold online after the customer confirms they have the capability to install it at their end.

Assembly Scope and Service Planning

This listing is for the mains power supply assembly only; the relay board (PN. 500702) is not included. Installation is a technical service task rather than an operator-level accessory change. Confirmation of the instrument configuration and installation capability helps establish the appropriate replacement arrangement before purchase.

For enquiries about this assembly, contact Service AI with your instrument model, the existing assembly's identification details, and your service requirements. We can discuss the scope of supply and the planned installation.

Power Supply Replacement: LabPundit Technical Reference

Our Replacing the Power Supply on LS6000/LS6500 Units: A Technical Guide provides service context for technicians and engineers. It covers relay-board separation, preservation of wiring and hardware, and connection verification during replacement.

The guide also addresses electrical isolation and the instrument's battery-backed circuitry. Mains-powered assemblies and circuitry that can retain energy require qualified electrical-service procedures; this reference complements the applicable instrument service documentation.

Voltage-Check Reference for PN. 606682

LabPundit's AC and DC Voltage Checks on a Beckman LS6500 Mains Power Supply includes a video reference addressing the module's +5 VDC, +15 VDC, −15 VDC, and +24 VDC outputs. It is intended as technical context for qualified service personnel, not an instruction for untrained users to perform live electrical measurements.

For additional instrument-specific resources, browse our LabPundit Guide to Beckman LS6500.
