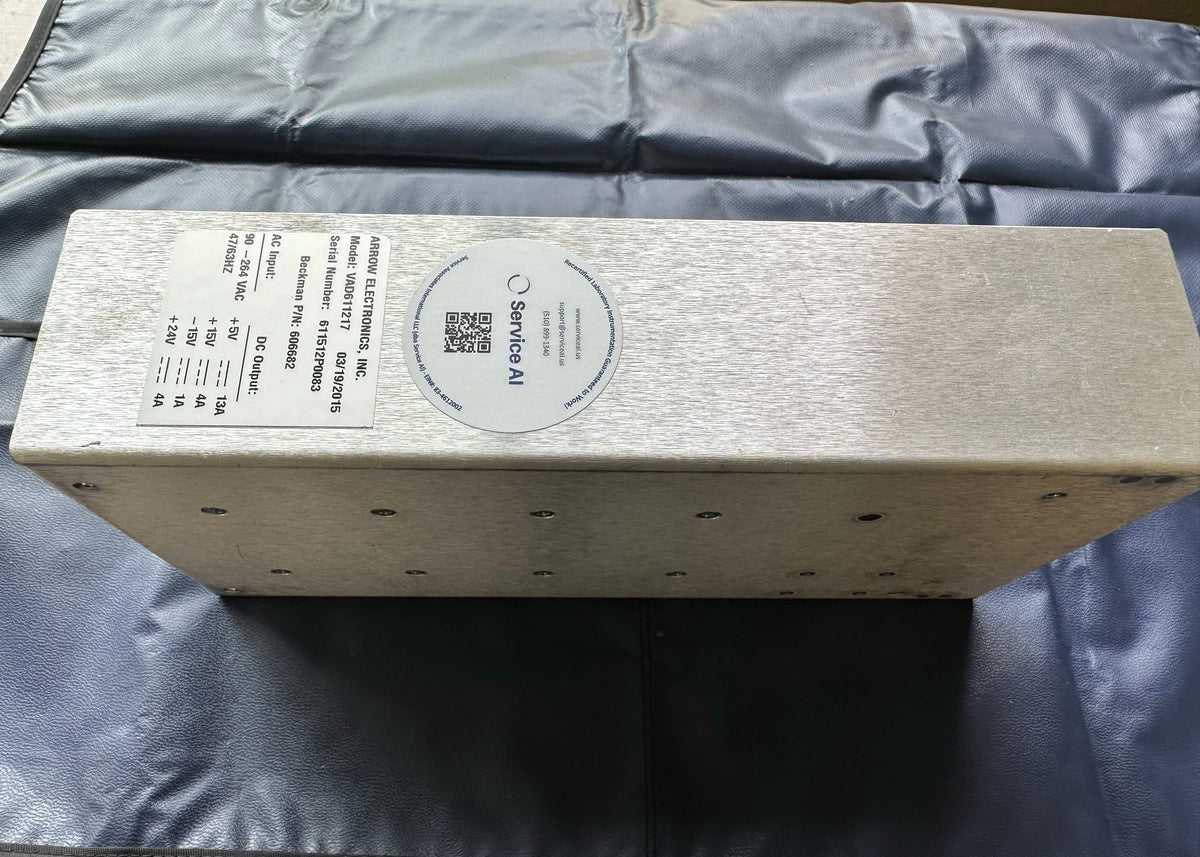

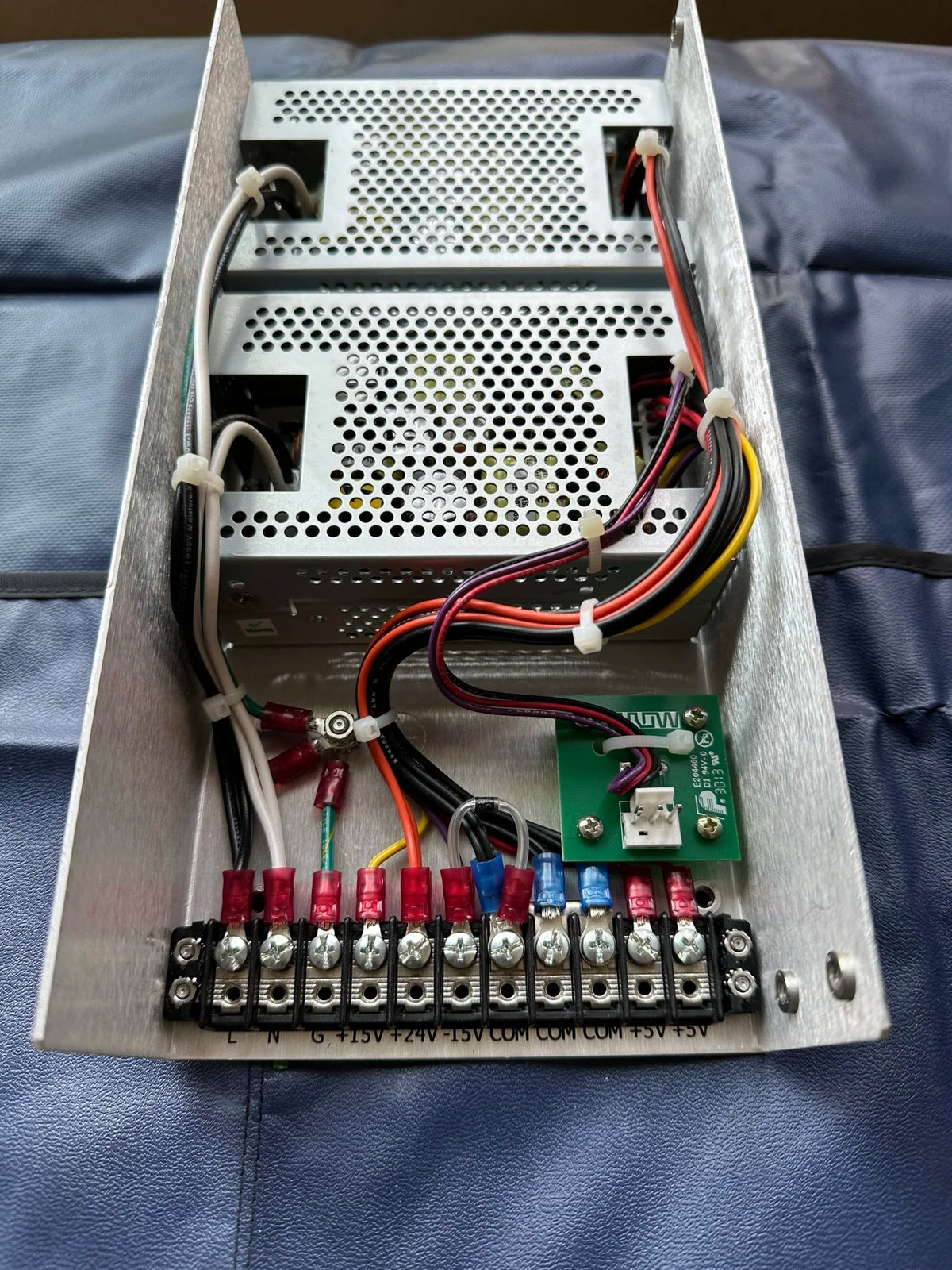

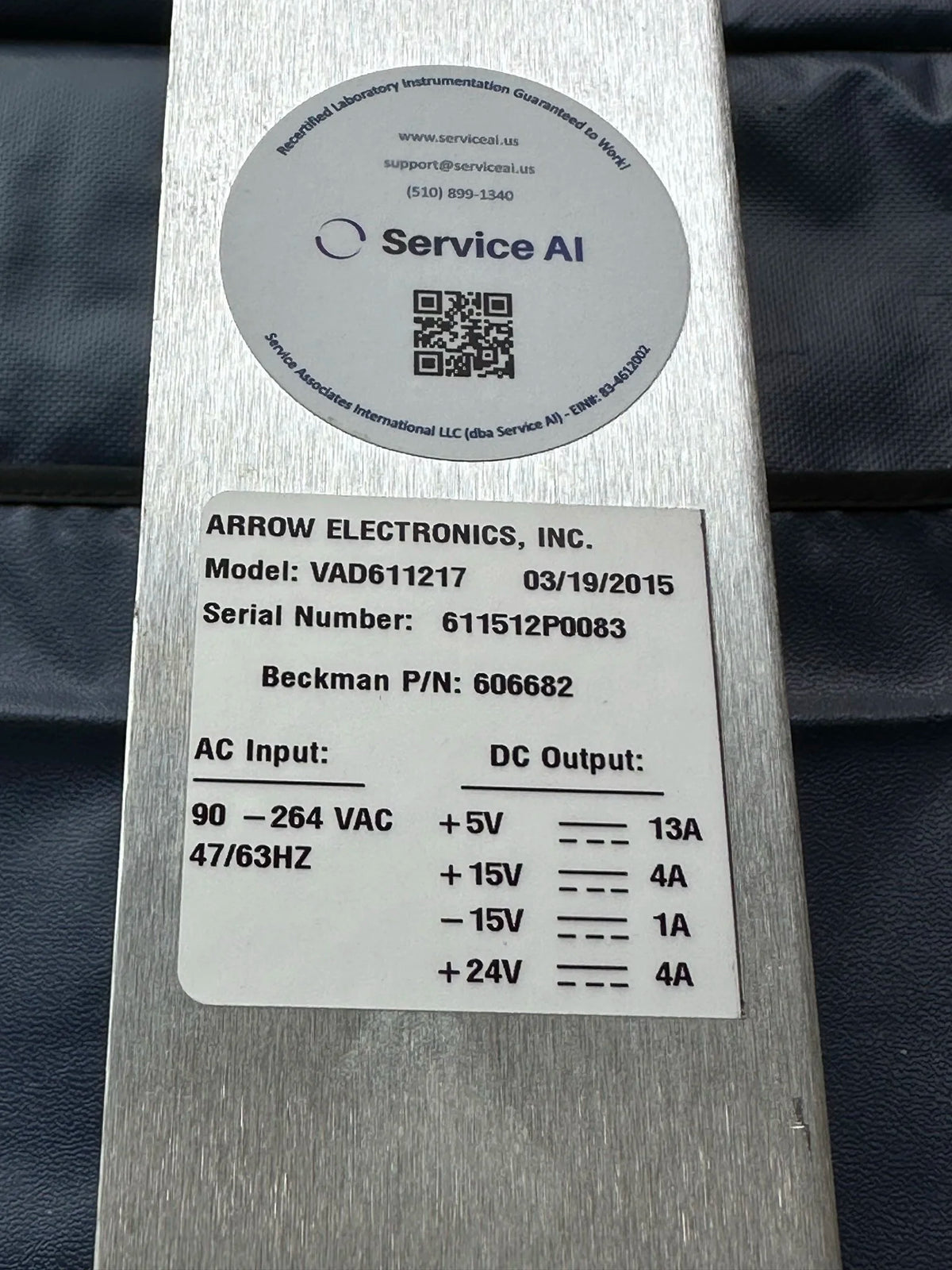

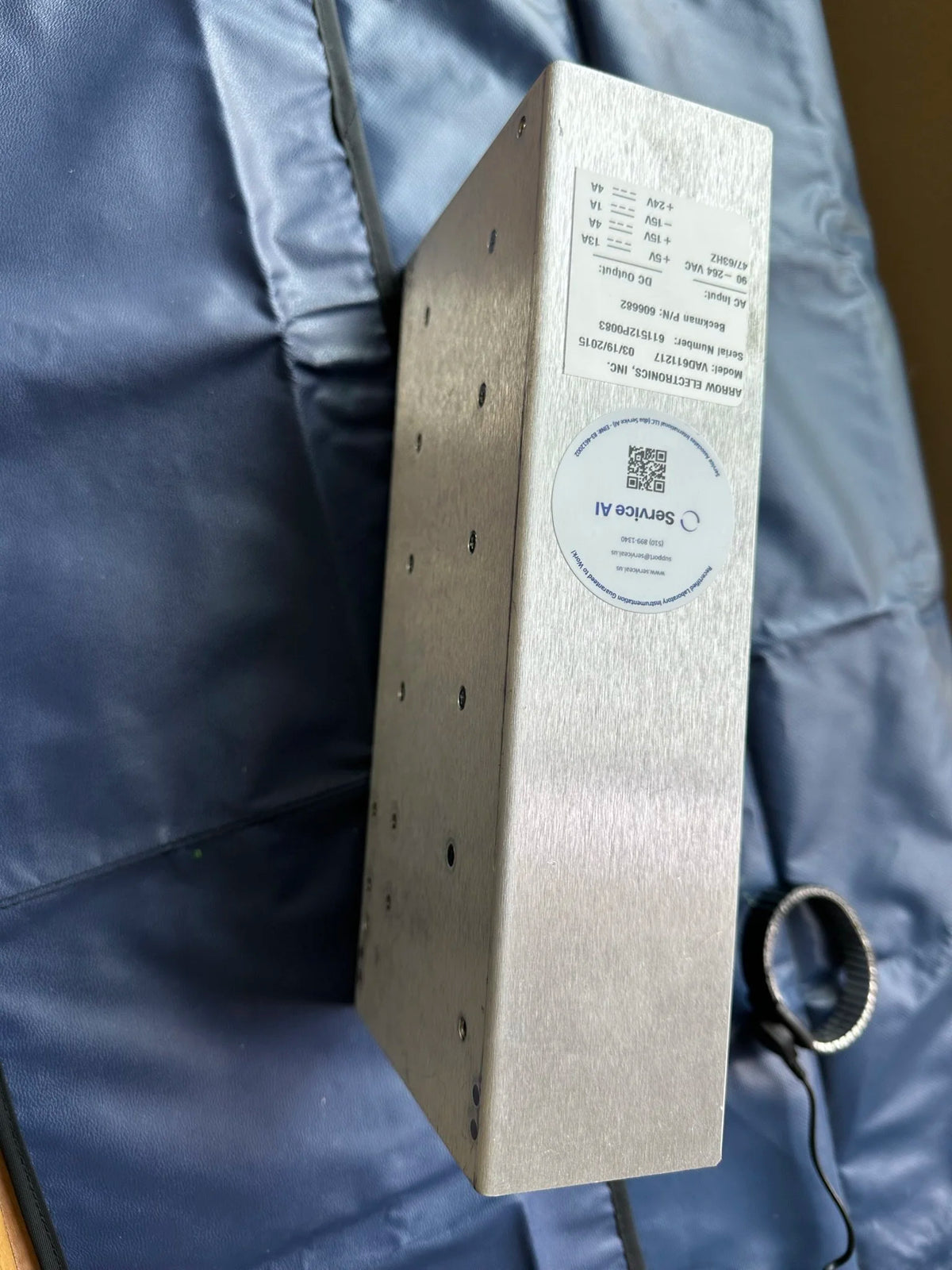

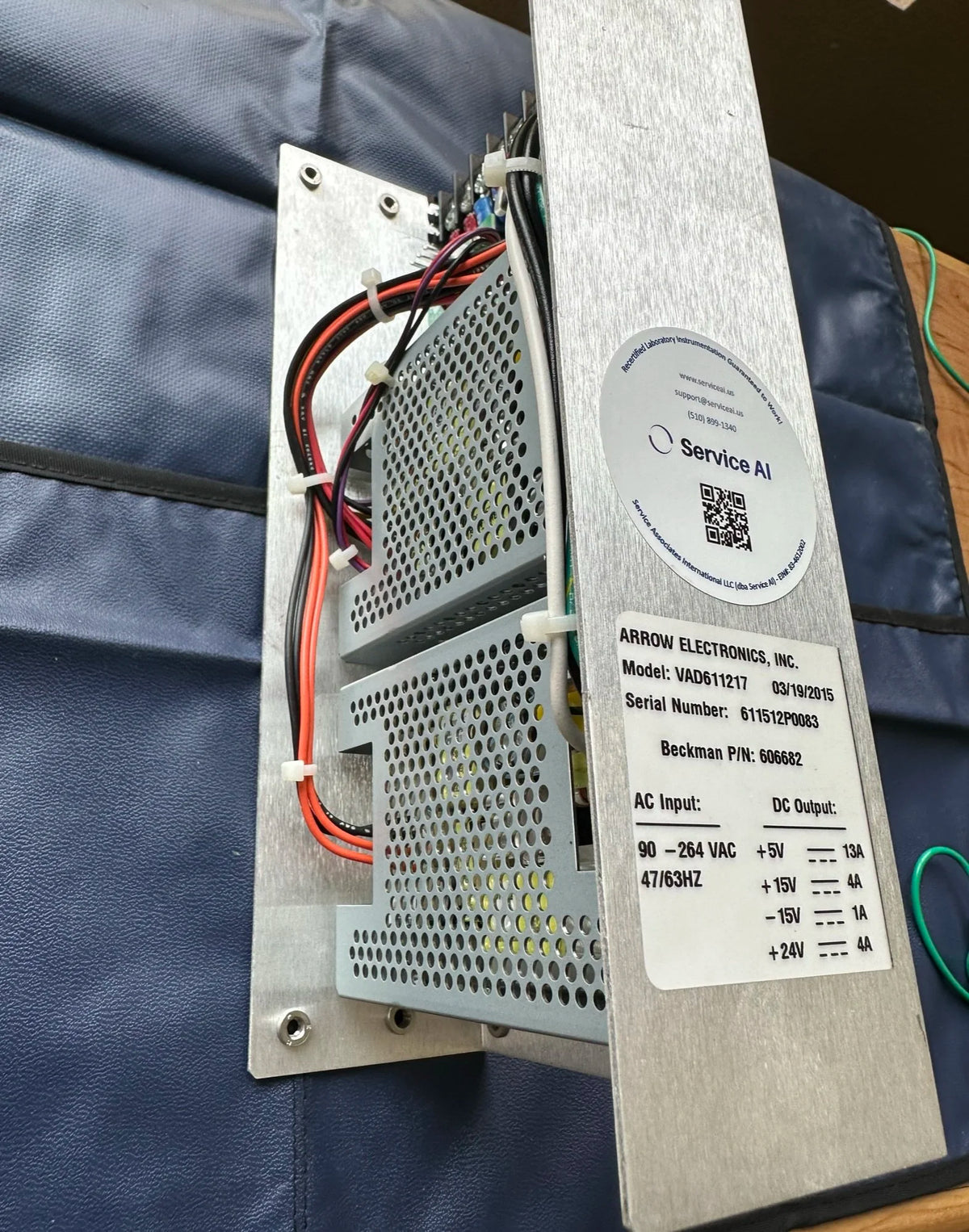

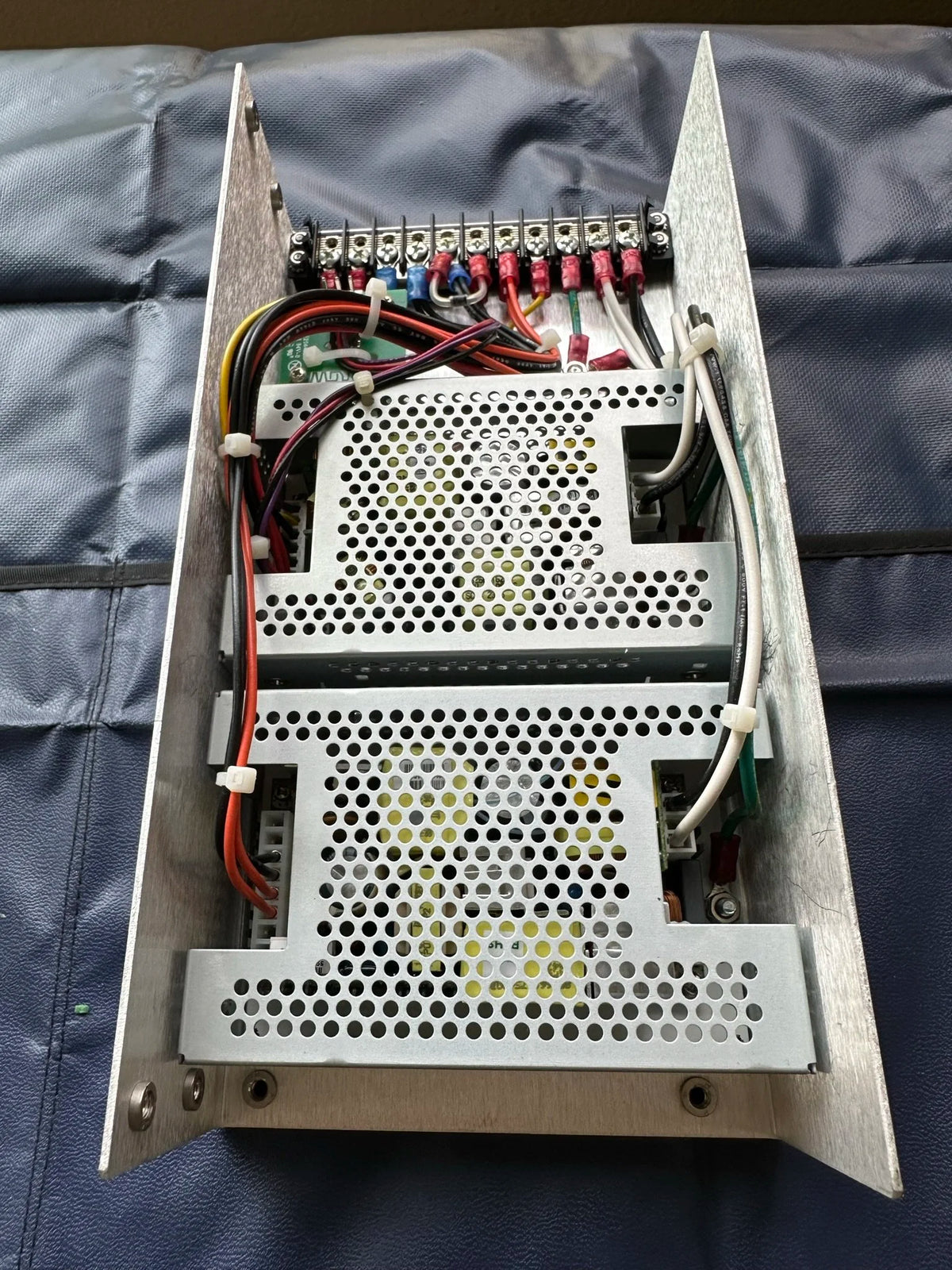

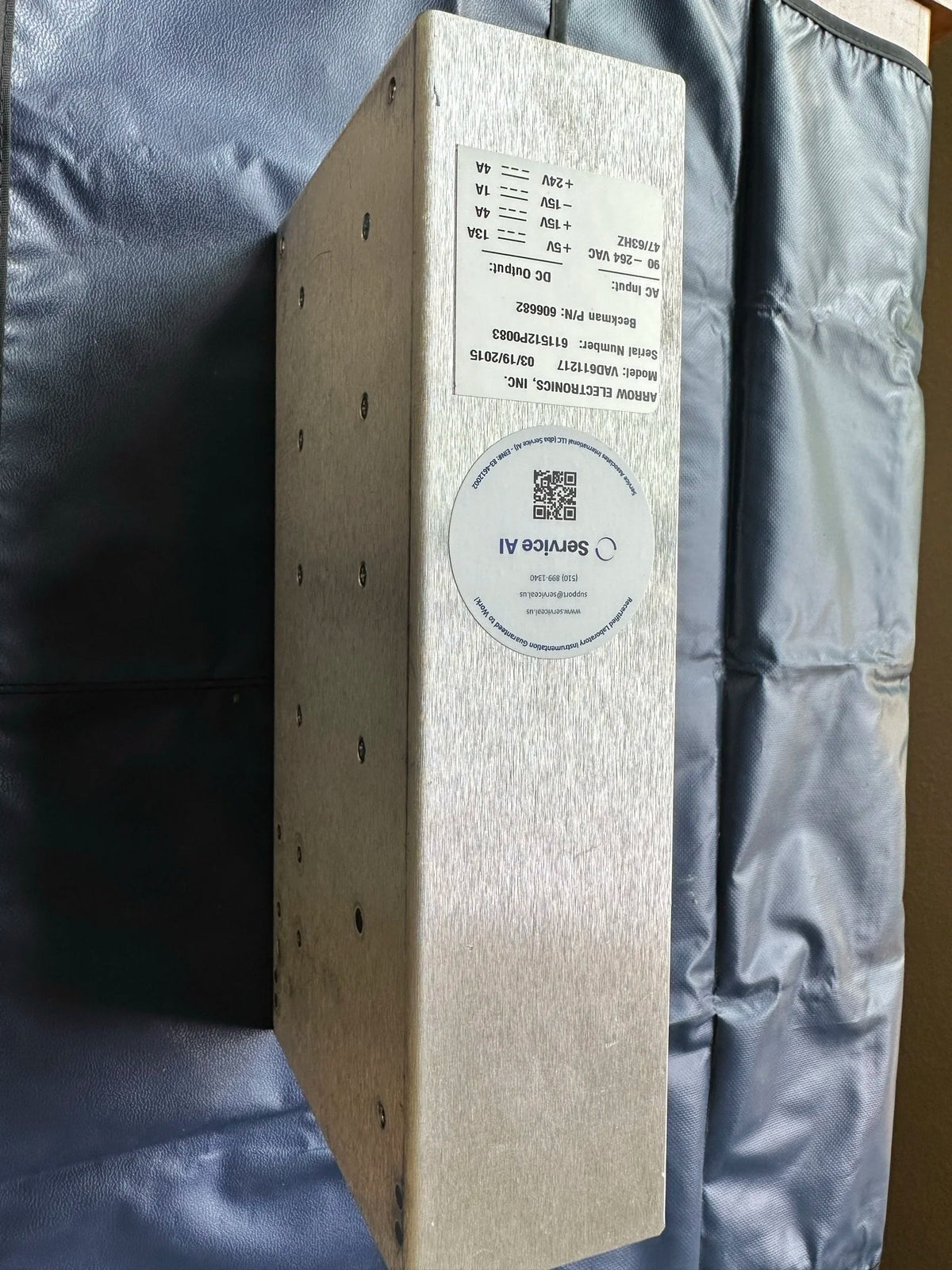

Introducing the fully tested Newer Version Beckman LS6500 Mains Power Supply (Part No. 606682), now available for shipping! Please note that the Relay Board (Part No. 500702), which is seen piggybacked on the power supply inside the instrument, is sold separately and not included with this module.
Professional installation is typically recommended. If you have the necessary expertise, you are encouraged to purchase this part online and install it yourself. Should you need installation assistance, Service AI offers on-site support for an additional fee. Please contact us for any further assistance with your power supply installation.
Same Relay Board for Both Power Supply Versions
The older and newer LS6500 power supply versions use the same relay board, PN. 500702. This newer-version listing does not include the relay board. If you also need the board, see our LS6500 power supply with relay board listing.
LabPundit: AC and DC Voltage Checks

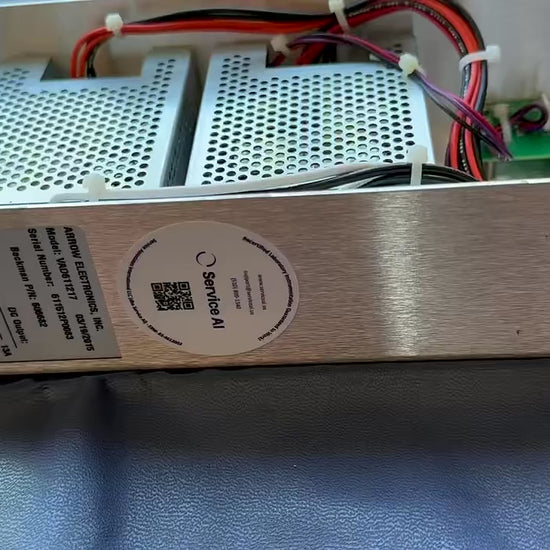

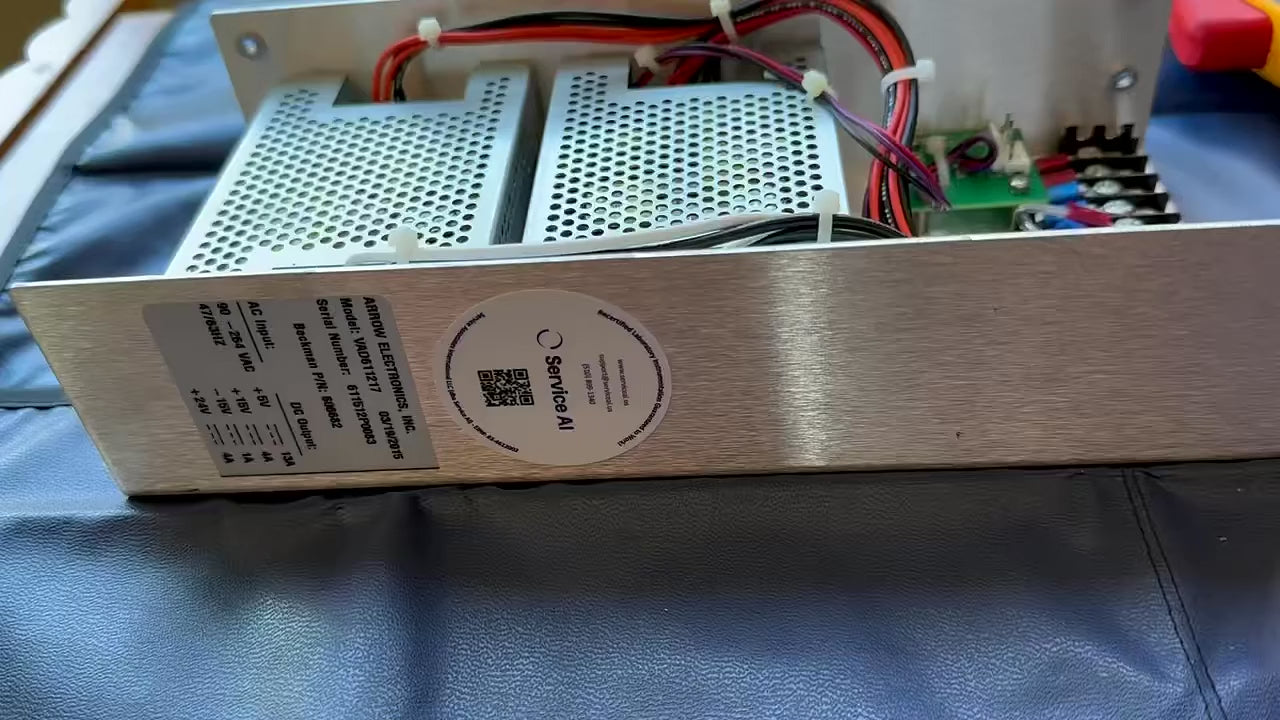

LabPundit's LS6500 AC and DC voltage-check article features a newer-style power supply demonstrated outside the instrument. The video covers the +5 VDC, +15 VDC, −15 VDC, and +24 VDC outputs and provides a useful reference for qualified technicians assessing this module.
LabPundit: Power Supply Replacement Guide
Our LabPundit power supply replacement guide discusses wiring identification, mounting hardware, relay-board handling, and final connection checks. Installation and live voltage testing are work for qualified technicians using the instrument's service instructions.
More LS6500 Resources
Browse the LabPundit Guide to Beckman LS6500 for additional articles about this instrument platform.
On-Site Installation
Service AI offers on-site power supply installation, if required, for an additional fee. Contact us for an installation quotation or assistance with this power supply.
