Get Fully Tested Spare Parts and Accessories with Expert Installation Assistance from Service AI
At Service AI, we stock a wide range of new and recertified Beckman Coulter spare parts and accessories that are fully tested for quality assurance. Whether you need a replacement part or an accessory for your equipment, we have you covered.
Our team of experts can also assist you with specialized service intervention for installing spare parts and accessories. To get started, simply email us at support@serviceai.us or call us at 510-899-1340.

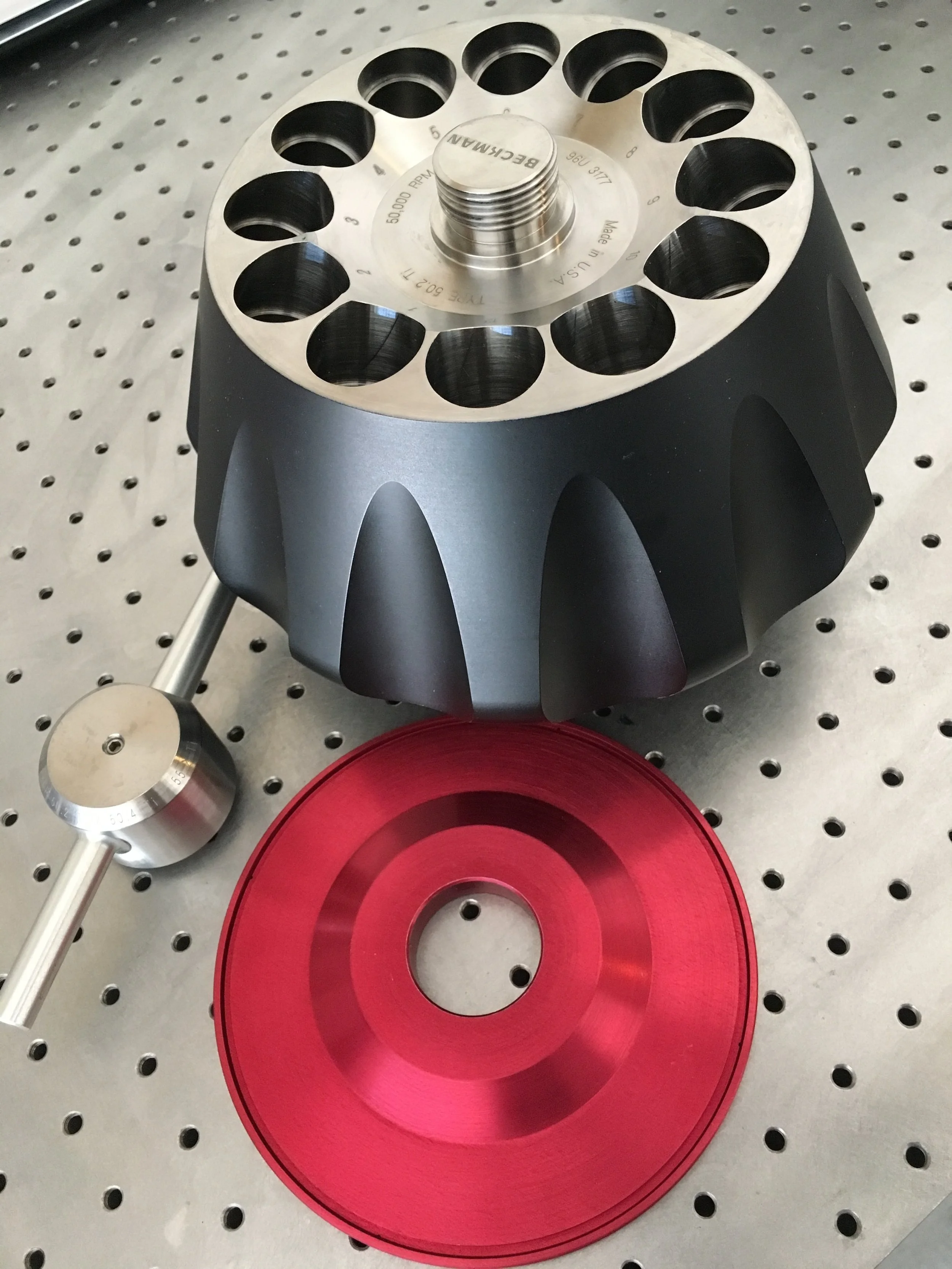

Beckman Type 50.2 Ti Rotor (INSPECTED)
Beckman Type 50.2 Ti Rotor (INSPECTED)

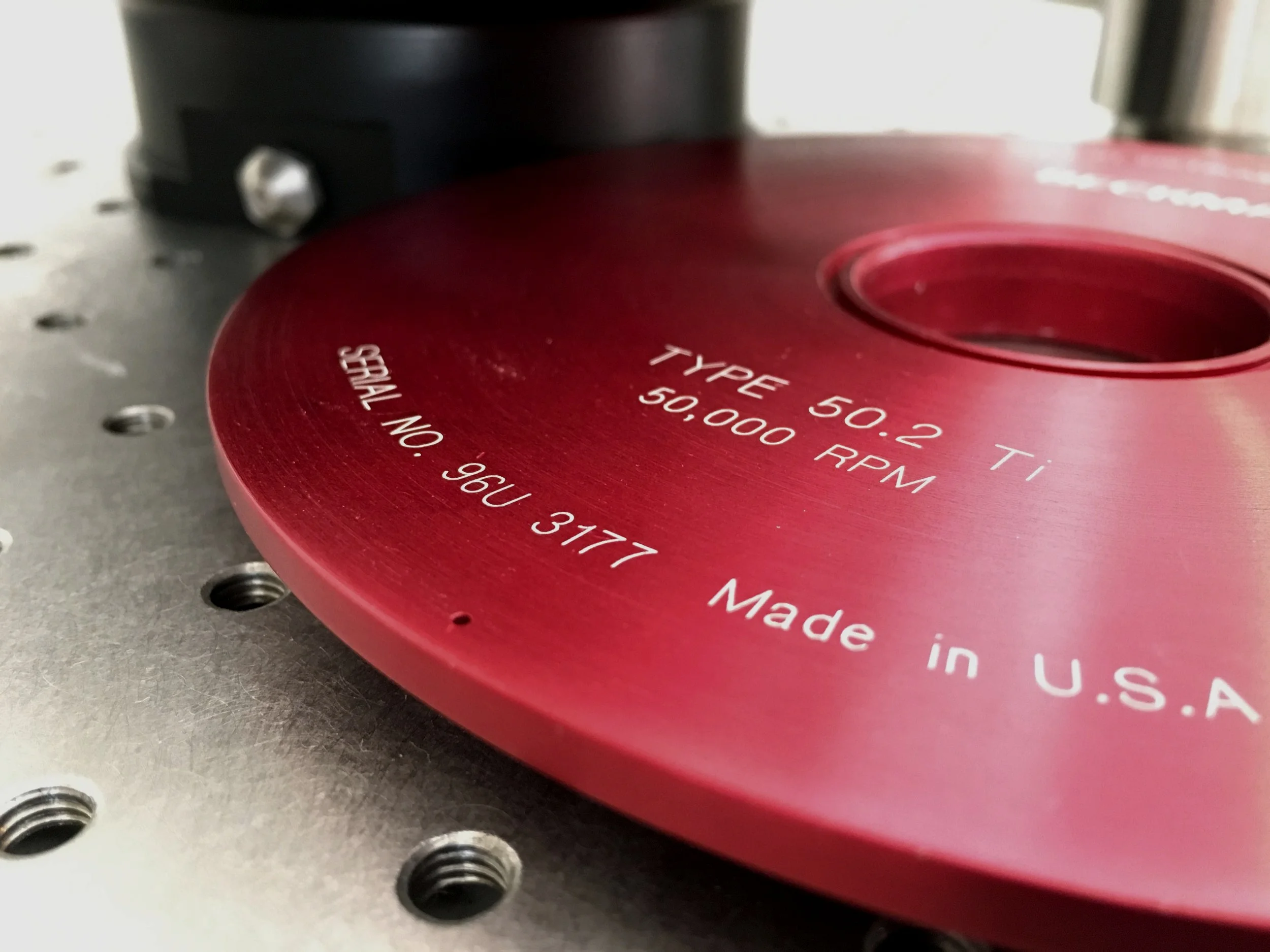

The Type 50.2 Titanium rotor is rated for 50 000 rpm. It is a fixed angle Beckman Coulter rotor designed to centrifuge up to twelve tubes at a 24-degree angle to the axis of rotation. This rotor will ship with a new over-speed disk and o-rings, and can be used In Beckman Coulter Class G, H, R, and S Preparative Ultracentrifuges.
This rotor will work well with the Optima L-100K ultracentrifuge.
ROTOR SPECIFICATIONS:
Maximum speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 000 rpm
Density rating at maximum speed. . . . . . . . . . . . . . . . . . . . . . . . . 1.2 g/mL
Relative Centrifugal Field* at maximum speed
At rmax (107.9 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302 000 × g
At rav (81.2 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227 000 × g
At rmin (54.4 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152 000 × g
k factor at maximum speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Conditions requiring speed reductions . . . . . . . . . . . . . . . see RUN SPEEDS in rotor manual
Number of tube cavities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Available tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see Table 1 in rotor manual
Nominal tube dimensions (largest tube) . . . . . . . . . . . . . . . . . . 25 × 89 mm
Nominal tube capacity (largest tube). . . . . . . . . . . . . . . . . . . . . . . . . 39 mL
Nominal rotor capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468 mL
Approximate acceleration time to maximum speed
(fully loaded) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 1/2 min
Approximate deceleration time from maximum speed
(fully loaded) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 min
Weight of fully loaded rotor . . . . . . . . . . . . . . . . . . . . . . . . 13.6 kg (30 lb)
Rotor material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . titanium
Also see our web page on Beckman Coulter ultracentrifuges available in our stock for this rotor.
