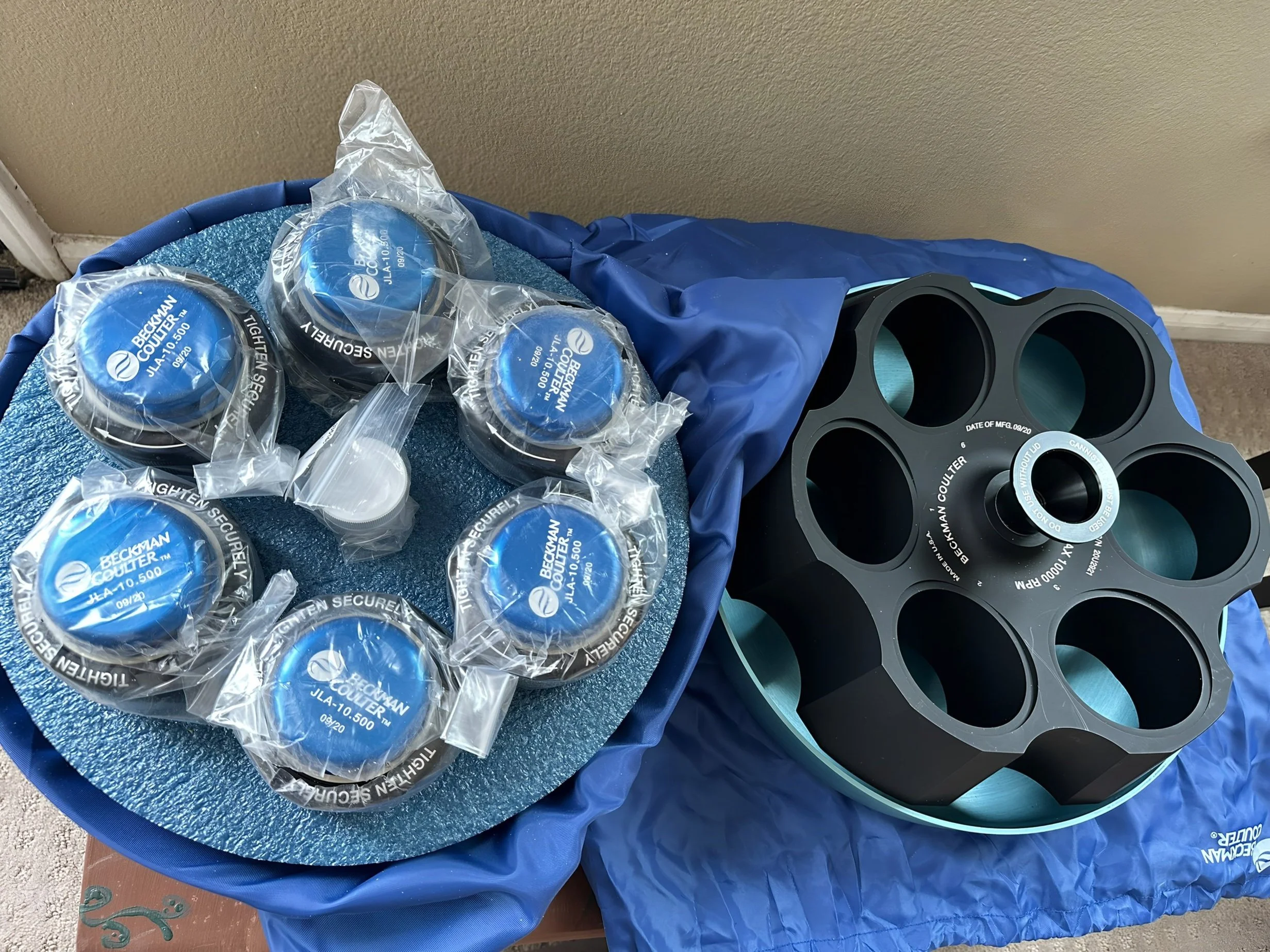

JLA-10.500 Fixed-Angle Rotor, made of aluminum, comes with six biosafety liquid canisters equipped with secondary liquid closures. This rotor is designed for large-scale initial processing of bacteria or other cells from fermenters, clearing cellular debris from homogenates, or collecting subcellular organelles and protein precipitates Designed to be used with the Avanti J Series and J2 Series centrifuges, it enhances the efficiency and productivity of your laboratory processes.

The J-Lite JLA-10.500 Fixed Angle Rotor is a versatile and high-capacity rotor designed for use with Beckman Coulter Avanti® J and J2 series centrifuges. It is ideal for efficiently pelleting cells from large volumes, separating cell particles from tissue homogenates, and purifying low-sedimentation particles such as viruses.

Key Specifications:

• Maximum Speed: 10,000 RPM

• Maximum Relative Centrifugal Force (RCF): 18,600 × g (at maximum radius)

• Rotor Angle: 20 degrees

• Nominal Rotor Capacity: 3 liters (6 × 500 mL bottles)

• Material: Anodized aluminum rotor body with carbon fiber epoxy composite cannisters

• Critical Speed Range: 600 to 800 RPM

• Weight (Fully Loaded): 16.2 kg (35.7 lbs)

Design and Features:

• High Capacity: Can process up to 3 liters per run using six 500 mL bottles.

• Efficient Performance: The rotor’s design provides effective sedimentation, making it suitable for a wide range of applications, including large-scale cell harvesting.

• Reduced Weight: Approximately 30% lighter than comparable all-aluminum rotors, due to its carbon fiber composite cannisters.

• Safety: Features interchangeable cannisters with closures for secondary containment of samples, ensuring safe operation even with hazardous materials.

Maintenance and Care:

• Regular Inspection: Check the rotor body, cannisters, and O-rings regularly for damage or wear. Ensure the cannisters are free of deep cracks and that the sealing surfaces are smooth.

• Lubrication: Use Spinkote lubricant on metal threads and silicone vacuum grease on O-rings to maintain sealing integrity.

• Cleaning: Wash with mild detergent, rinse thoroughly with distilled water, and air-dry upside down.

Part Numbers for the JLA-10.500 Rotor Assembly

1. Rotor Assembly:

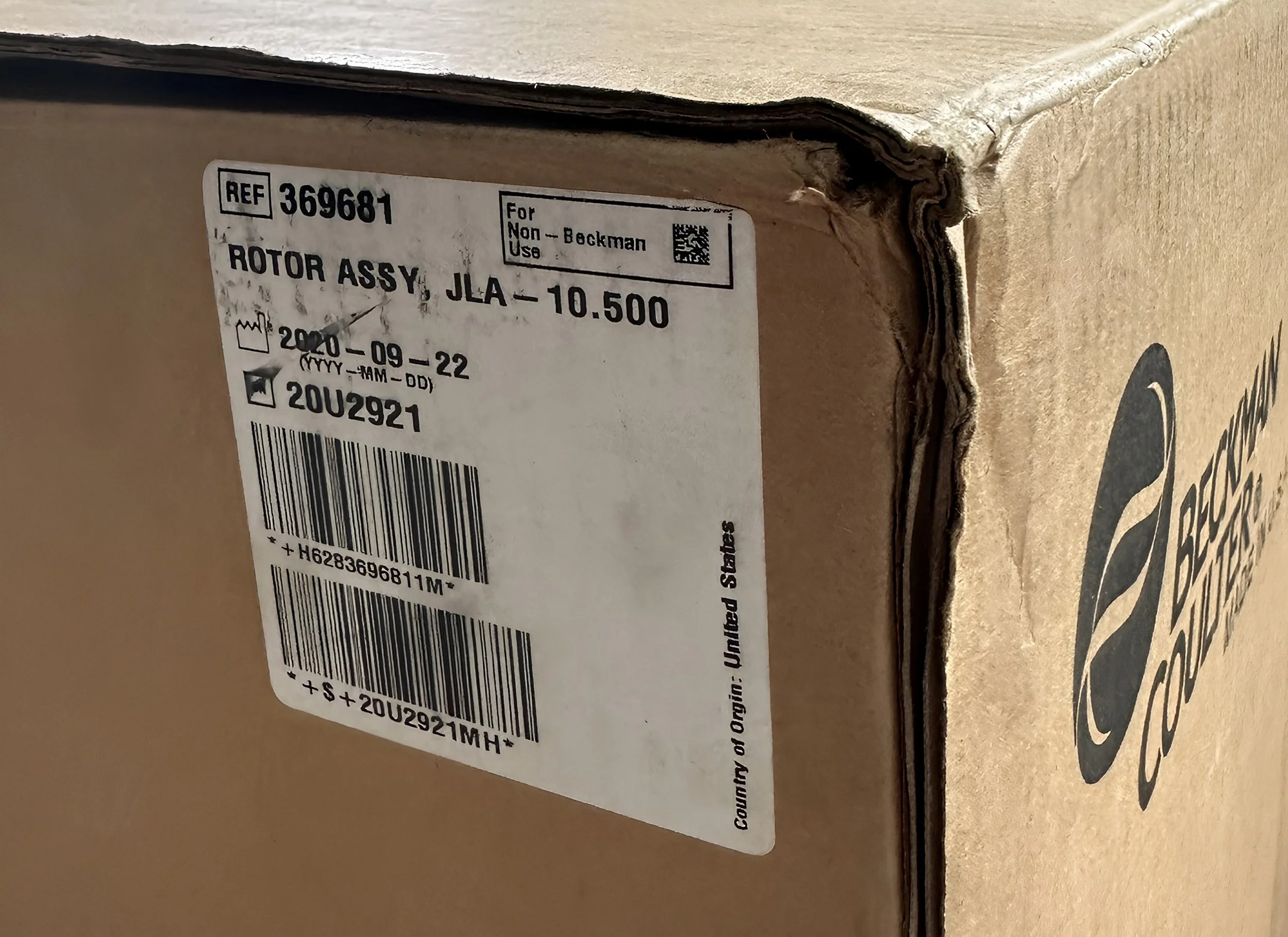

   • JLA-10.500 Rotor Assembly with magnets (rotors manufactured Jan. 2002 and later): 369681

   • JLA-10.500 Rotor Assembly (rotors manufactured through Dec. 2001): 360830

2. Cannisters and Accessories:

   • Cannisters (set of 2 with 2 cannister closures): 360828

   • Cannister Closure Assembly (1): 360842

   • Cannister Closure O-ring (set of 12): 360848

   • Cannister Sleeve Washer: 360834

3. Rotor Lid and Lubrication:

   • Rotor Lid Assembly: 363334

   • Spinkote Lubricant (2 oz): 306812

   • Silicone Vacuum Grease (1 oz): 335148

   • Tri-Flow Lubricant (2 oz): 883371

4. Cleaning Supplies:

   • Rotor Cleaning Kit: 339558

   • Solution 555 (1 qt): 339555

This rotor offers exceptional performance and safety, with easy maintenance ensuring long-term reliability for demanding centrifugation applications.

Source:

• Title: J-Lite JLA-10.500 Fixed Angle Rotor Assembly Manual

• Publisher: Beckman Coulter, Inc., Spinco Business Center, Palo Alto, California

• Publication Date: March 2002

• Document ID: J-TB-048G

This manual provides detailed instructions, safety information, and technical specifications for the J-Lite JLA-10.500 Fixed Angle Rotor, ensuring proper usage and maintenance.
