The JA-17 rotor is a high-performance fixed-angle rotor designed for use with Beckman Coulter J2, J6, and Avanti® J Series centrifuges. It is ideal for a variety of centrifugation applications, including pelleting cells, subcellular particles, and cell membranes.

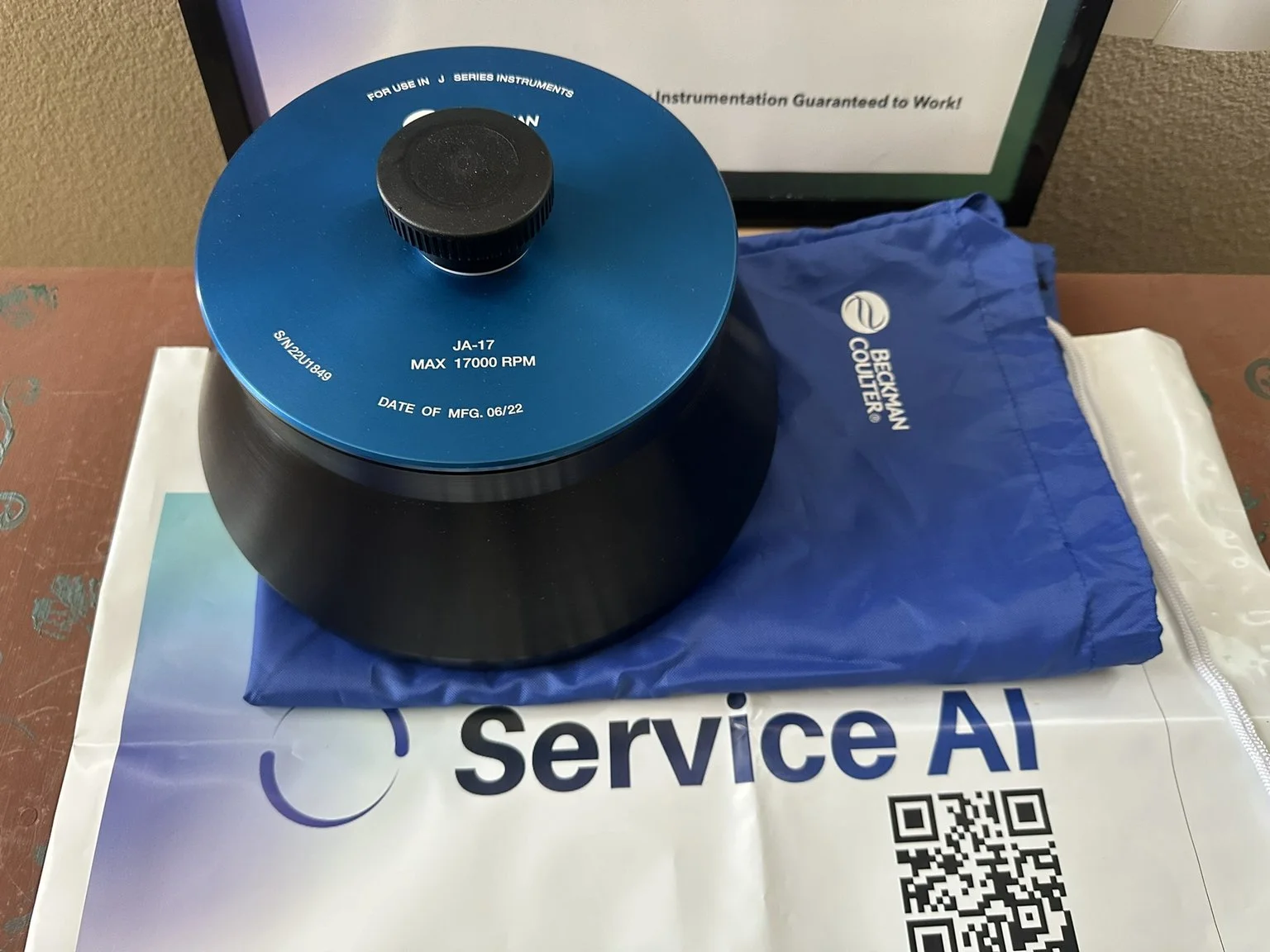

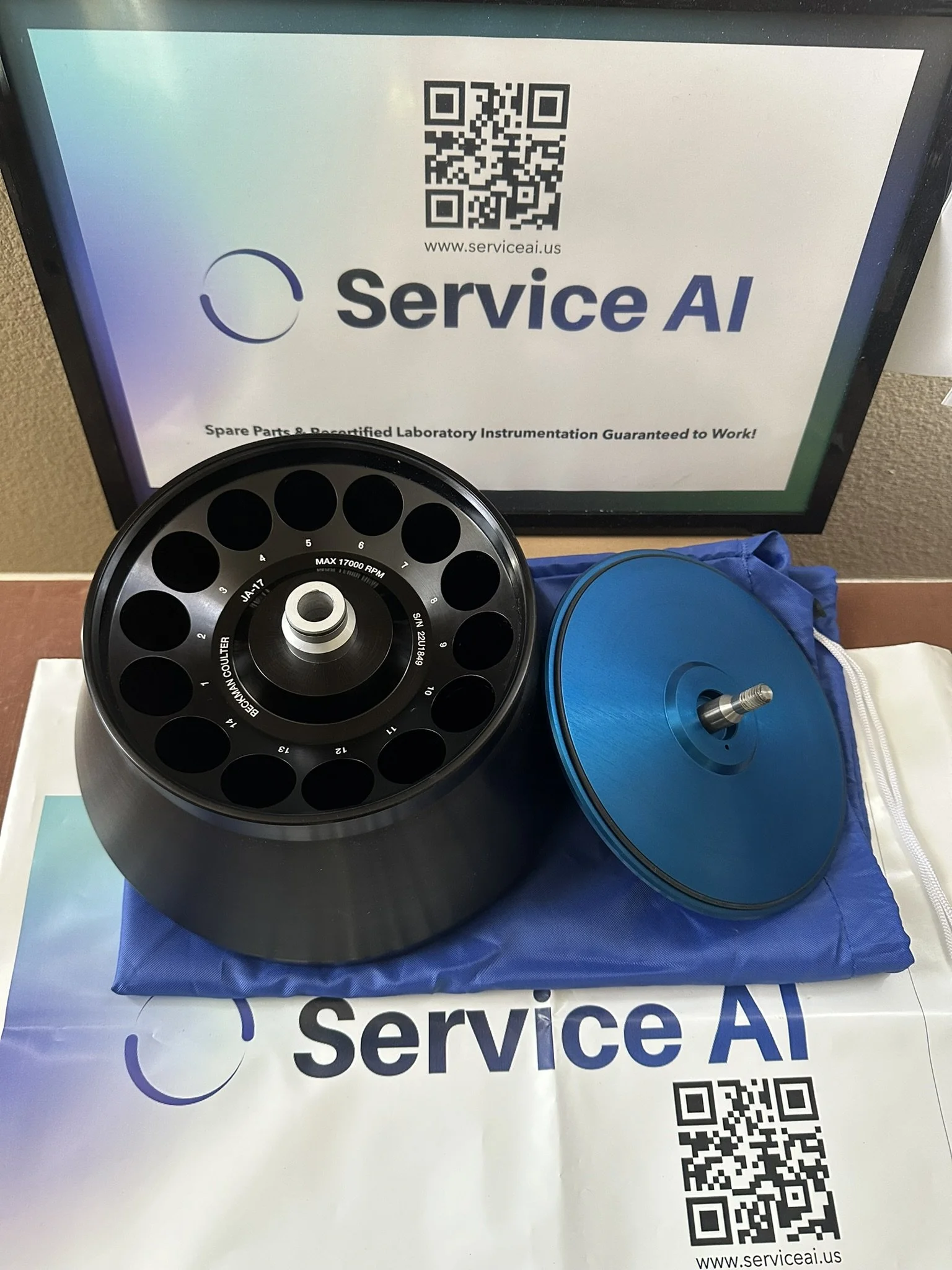

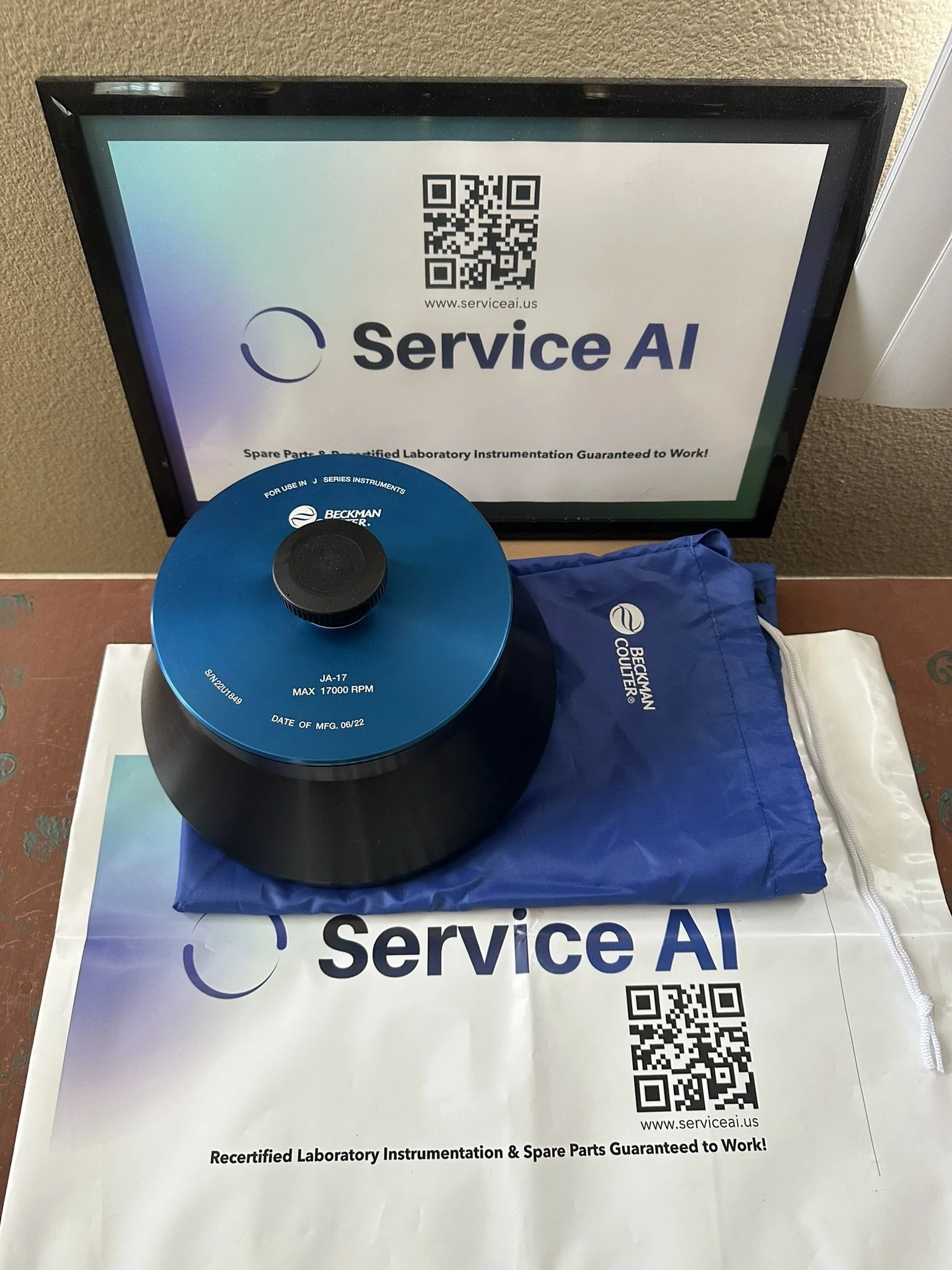

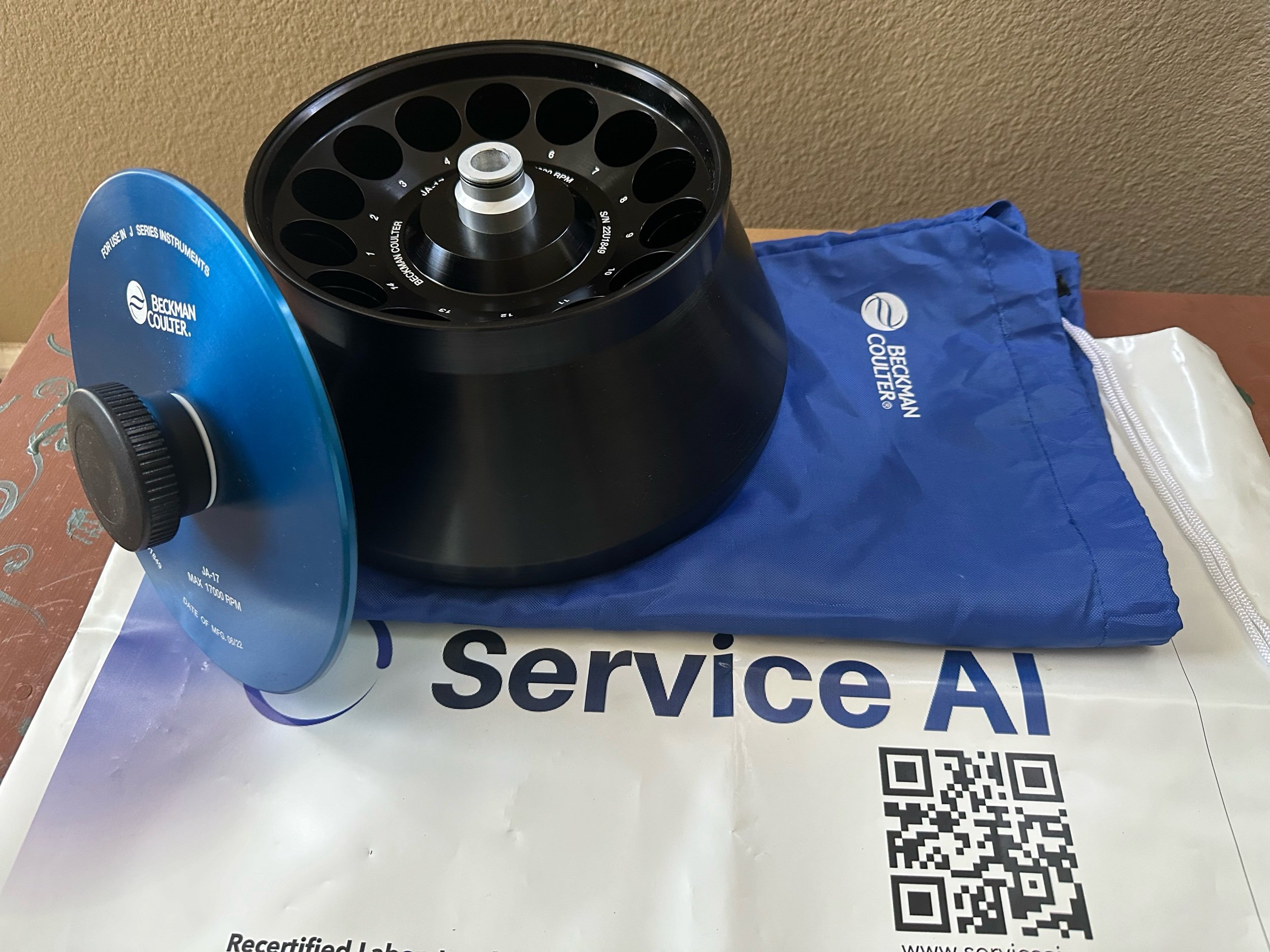

Our sparingly used JA-17 rotor assembly (DATE OF MFG. 06/22), is available at a bargain price with our Beckman Coulter Avanti JXN-30 Centrifuge. This package deal is a great value for researchers and biotech startups.

Salient Features of the JA-17 Fixed-Angle Rotor

Key Specifications:

• Maximum Speed: 17,000 RPM

• Maximum Relative Centrifugal Force (RCF): 39,800 × g (at maximum radius)

• Rotor Capacity: 14 tubes, each with a maximum capacity of 50 mL

• Rotor Angle: 25 degrees

• Maximum Sample Density: 1.2 g/mL

• Material: Anodized aluminum for corrosion resistance

• O-rings: Made of Buna N rubber, providing atmospheric pressure sealing during centrifugation

 Design and Features:

• Efficient Design: Capable of processing up to 700 mL per run, making it suitable for isolating and banding different classes of subcellular organelles.

• Durability: Constructed from anodized aluminum, the JA-17 rotor is designed for long-term use, with a 7-year warranty.

• Compatibility: Can be used with a wide range of tube types, including polycarbonate, polyallomer, and polypropylene tubes.

• Safety: Incorporates O-rings and a containment system that has been validated for microbiological aerosol containment, ensuring safe operation even with hazardous materials.

• Ease of Use: The rotor features embedded magnets for easy identification and can be securely fastened using a turn-knob lid.

 Maintenance and Care:

• Lubrication: Requires regular lubrication of metal threads and O-rings to prevent wear and maintain sealing integrity.

• Cleaning: Wash the rotor immediately after exposure to corrosive materials and periodically under normal conditions to prevent residue buildup.

• Decontamination: Can be decontaminated using tested solutions such as RadCon Surface Spray, with no damage to the anodized surfaces.

 The JA-17 rotor is a reliable choice for high-speed centrifugation, offering consistent performance and longevity with proper maintenance.

JA-17 Rotor Part Numbers

1. Rotor Assembly:

   • JA-17 Rotor Assembly with magnets (manufactured January 2002 and later): 369691

   • JA-17 Rotor Assembly (manufactured before December 2001): 341973

2. Lid and O-rings:

   • JA-17 Lid Assembly: 369760

   • Rotor Lid O-ring: 878951

   • Rotor Hub O-ring: 811656

3. Accessories:

   • Tie-down Kit: 364913

   • Hold-down Knob (for use without lid): 354456

4. Lubricants and Cleaning Supplies:

   • Spinkote Lubricant (2 oz): 306812

   • Silicone Vacuum Grease (1 oz): 335148

   • Rotor Cleaning Kit: 339558

   • Beckman Solution 555 (1 qt): 339555

   • Rotor Cleaning Brush: 339379

   • Rotor Removal Tool: 338896

   • Collar Adapter for Rotor Removal Tool: 338689

5. Tubes and Bottles: (Various options available, refer to Table 1 in the document for specific part numbers and descriptions)

These part numbers cover the essential components and accessories for maintaining and operating the JA-17 Fixed Angle Rotor effectively.
